Transfers data from GPU VKBuffer to CPU target buffer. More...

#include <BufferDownloadProcessor.hpp>

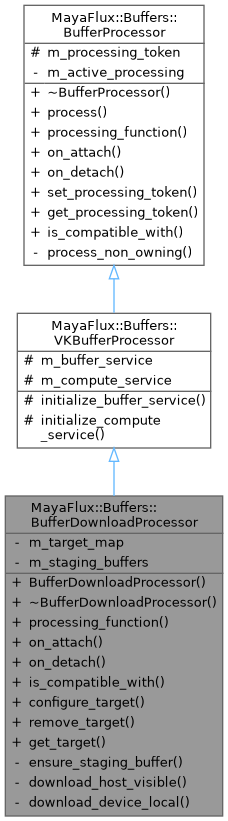

Inheritance diagram for MayaFlux::Buffers::BufferDownloadProcessor:

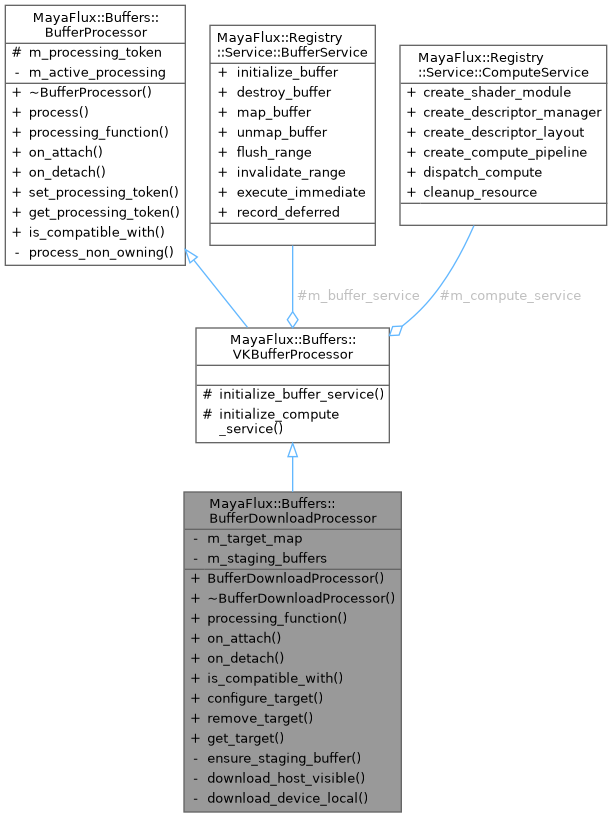

Collaboration diagram for MayaFlux::Buffers::BufferDownloadProcessor:

Public Member Functions
	BufferDownloadProcessor ()

	~BufferDownloadProcessor () override

void	processing_function (std::shared_ptr< Buffer > buffer) override
	The core processing function that must be implemented by derived classes.

void	on_attach (std::shared_ptr< Buffer > buffer) override
	Called when this processor is attached to a buffer.

void	on_detach (std::shared_ptr< Buffer > buffer) override
	Called when this processor is detached from a buffer.

bool	is_compatible_with (std::shared_ptr< Buffer > buffer) const override
	Checks if this processor can handle the specified buffer type.

void	configure_target (const std::shared_ptr< Buffer > &source, std::shared_ptr< Buffer > target)
	Configure target buffer for a specific source.

void	remove_target (const std::shared_ptr< Buffer > &source)
	Remove target configuration for a source.

std::shared_ptr< Buffer >	get_target (const std::shared_ptr< Buffer > &source) const
	Get configured target for a source.

Public Member Functions inherited from MayaFlux::Buffers::BufferProcessor
virtual	~BufferProcessor ()=default
	Virtual destructor for proper cleanup of derived classes.

void	process (std::shared_ptr< Buffer > buffer)
	Applies a computational transformation to the data in the provided buffer.

virtual void	set_processing_token (ProcessingToken token)
	Gets the preferred processing backend for this processor.

virtual ProcessingToken	get_processing_token () const
	Gets the current processing token for this buffer.

Private Member Functions
void	ensure_staging_buffer (const std::shared_ptr< VKBuffer > &source)

void	download_host_visible (const std::shared_ptr< VKBuffer > &source)

void	download_device_local (const std::shared_ptr< VKBuffer > &source)

Private Attributes
std::unordered_map< std::shared_ptr< Buffer >, std::shared_ptr< Buffer > >	m_target_map

std::unordered_map< std::shared_ptr< Buffer >, std::shared_ptr< VKBuffer > >	m_staging_buffers

Additional Inherited Members
Protected Member Functions inherited from MayaFlux::Buffers::VKBufferProcessor
void	initialize_buffer_service ()

void	initialize_compute_service ()

Protected Attributes inherited from MayaFlux::Buffers::VKBufferProcessor
Registry::Service::BufferService *	m_buffer_service = nullptr

Registry::Service::ComputeService *	m_compute_service = nullptr

Protected Attributes inherited from MayaFlux::Buffers::BufferProcessor
ProcessingToken	m_processing_token { ProcessingToken::AUDIO_BACKEND }

Detailed Description

Transfers data from GPU VKBuffer to CPU target buffer.

Inverse of BufferUploadProcessor. Handles staging and transfer from device-local buffers.

Usage: auto download = std::make_shared<BufferDownloadProcessor>(); download->configure_target(gpu_buffer1, cpu_target1); download->configure_target(gpu_buffer2, cpu_target2);

chain->add_processor(download, gpu_buffer1); chain->add_processor(download, gpu_buffer2);

Each process() call downloads latest data to the configured target for that source.

Definition at line 24 of file BufferDownloadProcessor.hpp.
