Depot.hpp File Reference

Dialog-backed loading and file-type helpers. More...

#include "MayaFlux/Kakshya/Region/Region.hpp"

Include dependency graph for Depot.hpp:

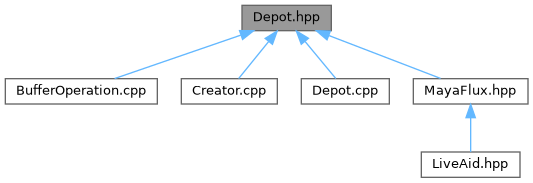

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Namespaces
namespace	MayaFlux
	Main namespace for the Maya Flux audio engine.
namespace	MayaFlux::Buffers
namespace	MayaFlux::Core
namespace	MayaFlux::IO
namespace	MayaFlux::Kakshya
namespace	MayaFlux::Nodes
	Contains the node-based computational processing system components.
namespace	MayaFlux::Nodes::Network

Typedefs
using	MayaFlux::IO::TextureResolver = std::function< std::shared_ptr< Core::VKImage >(const std::string &)>
	Callable that maps a raw material texture path to a GPU image.

Functions
std::shared_ptr< Kakshya::SoundFileContainer >	MayaFlux::choose_audio ()
	Present a native open-file dialog filtered to audio formats and load the chosen file via IOManager::load_audio().
std::shared_ptr< Kakshya::DynamicSoundStream >	MayaFlux::choose_audio_bounded (uint64_t max_frames=0, bool truncate=false)
	Present a native open-file dialog filtered to audio formats and load the chosen file via IOManager::load_audio_bounded().
std::shared_ptr< Kakshya::CameraContainer >	MayaFlux::choose_camera (bool choose_mode=true)
	Let the user pick a camera, and optionally a capture mode, then open it via IOManager::open_camera().
std::shared_ptr< Kakshya::CompositeContainer >	MayaFlux::choose_composite ()
	Choose a CSV or TSV file and load it as a CompositeContainer.
std::shared_ptr< Kakshya::CompositeContainer >	MayaFlux::choose_composite (const Kakshya::CompositeLayout &layout, size_t batch_size=1)
	Choose a CSV or TSV file and load it with an exact field layout.
std::shared_ptr< Buffers::TextureBuffer >	MayaFlux::choose_image (int desired_channels=4, std::optional< Kakshya::Region > region=std::nullopt)
	Present a native open-file dialog filtered to image formats and load the chosen file via IOManager::load_image().
std::vector< std::shared_ptr< Buffers::MeshBuffer > >	MayaFlux::choose_mesh ()
	Present a native open-file dialog filtered to 3D model formats and load the chosen file via IOManager::load_mesh().
std::shared_ptr< Nodes::Network::MeshNetwork >	MayaFlux::choose_mesh_network (IO::TextureResolver resolver=nullptr)
	Present a native open-file dialog filtered to 3D model formats and load the chosen file as a MeshNetwork via IOManager::load_mesh_network().
IO::VideoLoadResult	MayaFlux::choose_video (const IO::VideoLoadConfig &config)
	Present a native open-file dialog filtered to video formats and load the chosen file via IOManager::load_video(path, config).
std::shared_ptr< Buffers::VolumeGridBuffer >	MayaFlux::choose_volume ()
	Present a native open-file dialog filtered to volume formats and load the chosen file via IOManager::load_volume().
template<typename ContainerType , typename... Args> requires std::derived_from<ContainerType, Kakshya::SignalSourceContainer>
auto	MayaFlux::create_container (Args &&... args) -> std::shared_ptr< ContainerType >
	creates a new container of the specified type
std::shared_ptr< Buffers::VideoContainerBuffer >	MayaFlux::get_associated_buffer (const std::shared_ptr< Kakshya::VideoStreamContainer > &container)
	The buffer a video or camera container was hooked to.
std::vector< std::shared_ptr< Buffers::SoundContainerBuffer > >	MayaFlux::get_associated_buffers (const std::shared_ptr< Kakshya::SoundFileContainer > &container)
	The per-channel buffers an audio container was hooked to.
std::vector< std::shared_ptr< Buffers::SoundContainerBuffer > >	MayaFlux::get_associated_buffers (const std::shared_ptr< Kakshya::VideoFileContainer > &container)
	The audio buffers of a video file's extracted sound track.
std::shared_ptr< IO::IOManager >	MayaFlux::get_io_manager ()
	Retrieves the global IOManager instance for file loading and buffer management.
MAYAFLUX_API bool	MayaFlux::is_audio (const std::filesystem::path &filepath)
	Checks if the given file is an audio file based on its extension.
MAYAFLUX_API bool	MayaFlux::is_composite (const std::filesystem::path &filepath)
	Check whether an existing file has a supported Composite format.
MAYAFLUX_API bool	MayaFlux::is_image (const std::filesystem::path &filepath)
	Checks if the given file is an image file based on its extension.
std::vector< std::shared_ptr< Buffers::SoundContainerBuffer > >	MayaFlux::prepare_audio_buffers (const std::shared_ptr< Kakshya::SoundFileContainer > &container)
	Constructs and initializes per-channel SoundContainerBuffers without registering them.
bool	MayaFlux::save_audio (const std::shared_ptr< Kakshya::SoundStreamContainer > &container, const std::string &suggested_name="output.wav")
	Present a native save-file dialog and write container to the chosen path via IOManager::write().
bool	MayaFlux::save_composite (const std::shared_ptr< Kakshya::CompositeContainer > &container, const std::string &suggested_name="output.csv")
	Choose a CSV or TSV destination and save a CompositeContainer.
bool	MayaFlux::save_image (const std::shared_ptr< Buffers::TextureBuffer > &buffer, const std::string &suggested_name, const IO::ImageWriteOptions &options)
	Present a native save-file dialog filtered to image formats and save buffer to the chosen path via IOManager::save_image().
bool	MayaFlux::save_image (const std::shared_ptr< Buffers::TextureBuffer > &buffer, const std::string &suggested_name="output.png")
	Present a native save-file dialog filtered to image formats and save buffer to the chosen path via IOManager::save_image().
bool	MayaFlux::save_mesh (const std::shared_ptr< Buffers::MeshBuffer > &buffer, const std::string &suggested_name, const IO::ModelWriteOptions &options)
	Present a native save-file dialog filtered to 3D model formats and save buffer to the chosen path via IOManager::save_mesh().
bool	MayaFlux::save_mesh (const std::shared_ptr< Buffers::MeshBuffer > &buffer, const std::string &suggested_name="output.gltf")
	Present a native save-file dialog filtered to 3D model formats and save buffer to the chosen path via IOManager::save_mesh().
bool	MayaFlux::save_mesh (const std::shared_ptr< Nodes::Network::MeshNetwork > &network, const std::string &suggested_name, const IO::ModelWriteOptions &options)
	Present a native save-file dialog filtered to 3D model formats and save network to the chosen path via IOManager::save_mesh().
bool	MayaFlux::save_mesh (const std::shared_ptr< Nodes::Network::MeshNetwork > &network, const std::string &suggested_name="output.gltf")
	Present a native save-file dialog filtered to 3D model formats and save network to the chosen path via IOManager::save_mesh().
bool	MayaFlux::save_spatial (std::vector< IO::SpatialCaptureSource > sources, const std::string &suggested_name="output.abc")
	Present a native save-file dialog filtered to Alembic and write every source once via IOManager::save_spatial_snapshot().
bool	MayaFlux::save_volume (const std::shared_ptr< Buffers::VolumeGridBuffer > &volume, const std::string &suggested_name, const IO::VolumeWriteOptions &options)
	Present a native save-file dialog filtered to volume formats and save volume to the chosen path via IOManager::save_volume().
bool	MayaFlux::save_volume (const std::shared_ptr< Buffers::VolumeGridBuffer > &volume, const std::string &suggested_name="output.vdb")
	Present a native save-file dialog filtered to volume formats and save volume to the chosen path via IOManager::save_volume().

Detailed Description

Dialog-backed loading and file-type helpers.

This header provides the public API for working with IOManager, container creation, and file type checking within the MayaFlux engine. It includes:

• create_container<ContainerType>(args...): Template function to create signal source containers.
• is_audio(filepath), is_image(filepath), and is_composite(filepath): Check supported file categories.
• get_io_manager(): Access the global IOManager instance for file loading and buffer management.

Definition in file Depot.hpp.
