for_points()

static VertexLayout MayaFlux::Kakshya::VertexLayout::for_points ( uint32_t  stride = 28 )

inlinestatic

Factory: Create layout for point primitives (position, color, size)

Returns

VertexLayout configured for PointVertex

Definition at line 84 of file VertexLayout.hpp.

    {
        VertexLayout layout;
        layout.stride_bytes = stride;

        layout.attributes.push_back(VertexAttributeLayout {
            .component_modality = DataModality::VERTEX_POSITIONS_3D,
            .offset_in_vertex = 0,
            .name = "position" });

        layout.attributes.push_back(VertexAttributeLayout {
            .component_modality = DataModality::VERTEX_COLORS_RGB,
            .offset_in_vertex = 12,
            .name = "color" });

        layout.attributes.push_back(VertexAttributeLayout {
            .component_modality = DataModality::SCALAR_F32,
            .offset_in_vertex = 24,
            .name = "size" });

        return layout;
    }

References attributes, MayaFlux::Kakshya::VertexAttributeLayout::component_modality, MayaFlux::Kakshya::SCALAR_F32, stride_bytes, MayaFlux::Kakshya::VERTEX_COLORS_RGB, and MayaFlux::Kakshya::VERTEX_POSITIONS_3D.

Referenced by MayaFlux::Nodes::GpuSync::PointCollectionNode::PointCollectionNode(), MayaFlux::Nodes::GpuSync::PointCollectionNode::PointCollectionNode(), and MayaFlux::Nodes::GpuSync::PointNode::PointNode().

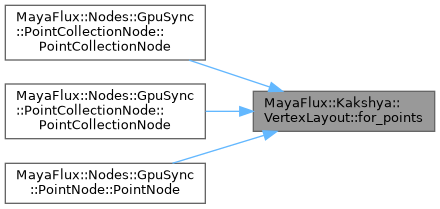

Here is the caller graph for this function:
