find_onset_positions()

std::vector< size_t > MayaFlux::Yantra::find_onset_positions	(	std::span< const double >	data,
		uint32_t	window_size,
		uint32_t	hop_size,
		double	threshold = 0.1
	)

Find onset positions using spectral flux.

Detects rapid increases in spectral energy (transients/attacks).

Parameters

data	Input data span
window_size	FFT window size
hop_size	Hop between analysis frames
threshold	Flux threshold for onset detection

Returns

Vector of sample positions where onsets occur

Definition at line 267 of file AnalysisHelper.cpp.

{
    const size_t num_windows = (data.size() - window_size) / hop_size + 1;

    if (num_windows < 2) {
        return {};
    }

    std::vector<double> flux_values(num_windows - 1);

    Eigen::VectorXd hanning_window(window_size);
    for (uint32_t i = 0; i < window_size; ++i) {
        hanning_window(i) = 0.5 * (1.0 - std::cos(2.0 * M_PI * i / (window_size - 1)));
    }

    Eigen::VectorXcd prev_spectrum;

    for (size_t i = 0; i < num_windows; ++i) {
        const size_t start_idx = i * hop_size;
        const size_t end_idx = std::min(start_idx + window_size, data.size());
        auto window = data.subspan(start_idx, end_idx - start_idx);

        Eigen::VectorXd windowed_data = Eigen::VectorXd::Zero(window_size);
        for (size_t j = 0; j < window.size(); ++j) {
            windowed_data(j) = window[j] * hanning_window(j);
        }

        Eigen::FFT<double> fft;
        Eigen::VectorXcd spectrum;
        fft.fwd(spectrum, windowed_data);

        if (i > 0) {
            double flux = 0.0;
            for (int j = 0; j < spectrum.size(); ++j) {
                double curr_mag = std::abs(spectrum(j));
                double prev_mag = std::abs(prev_spectrum(j));
                double diff = curr_mag - prev_mag;
                if (diff > 0) {
                    flux += diff;
                }
            }
            flux_values[i - 1] = flux;
        }

        prev_spectrum = spectrum;
    }

    std::vector<size_t> positions;

    double max_flux = *std::max_element(flux_values.begin(), flux_values.end());
    if (max_flux > 0.0) {
        for (size_t i = 0; i < flux_values.size(); ++i) {
            flux_values[i] /= max_flux;
        }
    }

    for (size_t i = 1; i < flux_values.size() - 1; ++i) {
        if (flux_values[i] > threshold && flux_values[i] > flux_values[i - 1] && flux_values[i] >= flux_values[i + 1]) {

            size_t sample_pos = (i + 1) * hop_size;
            positions.push_back(sample_pos);
        }
    }

    return positions;
}

References find_onset_positions().

Referenced by MayaFlux::detect_onsets(), MayaFlux::detect_onsets(), MayaFlux::detect_onsets_per_channel(), extract_onset_data(), and find_onset_positions().

Here is the call graph for this function:

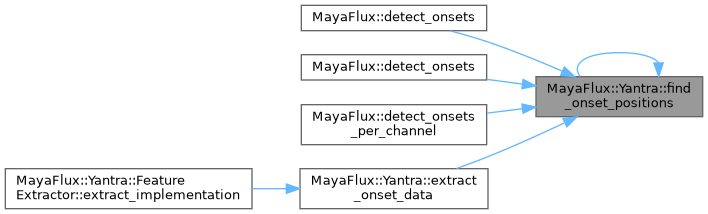

Here is the caller graph for this function:
