HannWindow()

std::vector< double > MayaFlux::Nodes::Generator::HannWindow

(

size_t

length

)

Creates a Hann window function.

Parameters

length

Number of samples in the window

Returns

Vector containing the window function values

The Hann window (sometimes called Hanning) is a bell-shaped window function that tapers smoothly to zero at both ends. It's commonly used for:

• Smoothing signal transitions
• Reducing spectral leakage in frequency domain analysis
• Creating envelope shapes for synthesis

Mathematical formula: w(n) = 0.5 * (1 - cos(2π*n/(N-1)))

Definition at line 5 of file WindowGenerator.cpp.

{
    std::vector<double> window(length);
    if (length == 1)
        return { 1.0 };
    const double scale = 1.0 / (length - 1);
    for (size_t i = 0; i < length; ++i) {
        window[i] = 0.5 * (1.0 - std::cos(2.0 * M_PI * i * scale));
    }
    return window;
}

Referenced by generate_window().

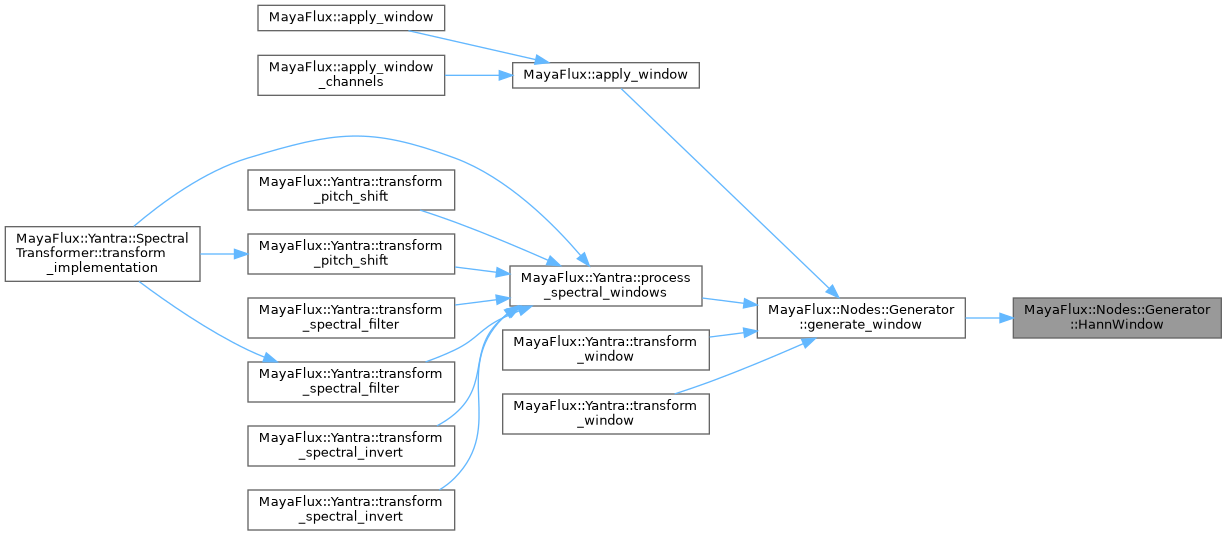

Here is the caller graph for this function:
