cubic_bezier()

Eigen::VectorXd MayaFlux::Kinesis::cubic_bezier	(	const Eigen::MatrixXd &	control_points,
		double	t
	)

Cubic Bezier interpolation using Eigen matrices.

Parameters

control_points	4xN matrix where columns are control points
t	Parameter in [0,1]

Returns

Interpolated point as Nx1 vector

Definition at line 180 of file MotionCurves.cpp.

{
    if (control_points.cols() != 4) {
        error<std::invalid_argument>(
            Journal::Component::Kinesis,
            Journal::Context::Runtime,
            std::source_location::current(),
            "Cubic Bezier interpolation requires 4 control points, but got {}",
            control_points.cols());
    }

    Eigen::Vector4d t_vector(t * t * t, t * t, t, 1.0);
    Eigen::Vector4d coeffs = BasisMatrices::CUBIC_BEZIER * t_vector;

    return control_points * coeffs;
}

References MayaFlux::Kinesis::BasisMatrices::CUBIC_BEZIER, MayaFlux::Journal::Kinesis, and MayaFlux::Journal::Runtime.

Referenced by interpolate().

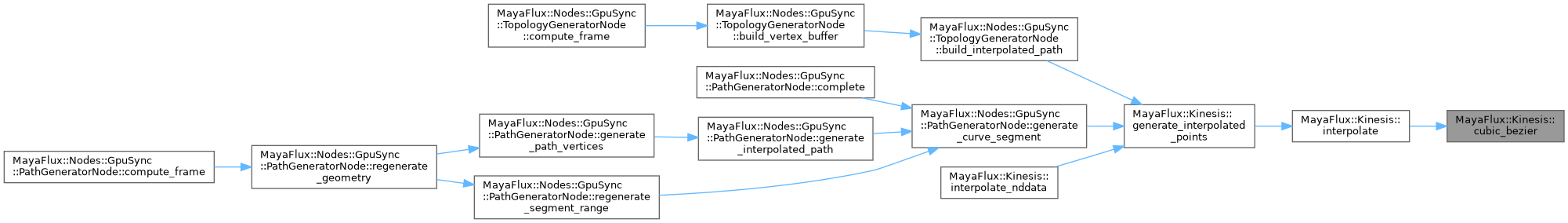

Here is the caller graph for this function:
