excite_at_position()

void MayaFlux::Nodes::Network::ModalNetwork::excite_at_position	(	double	position,
		double	strength = 1.0
	)

Excite modes based on normalized strike position.

Parameters

position	Normalized position (0.0 = node, 1.0 = antinode)
strength	Overall excitation strength

Amplitude distribution follows spatial mode shapes:

• Position 0.5 excites all modes equally (center strike)
• Position 0.0 or 1.0 excites odd modes only (edge strike)
• Intermediate positions create physical strike distributions

Definition at line 254 of file ModalNetwork.cpp.

{
    position = std::clamp(position, 0.0, 1.0);

    if (m_spatial_distribution.empty()) {
        compute_spatial_distribution();
    }

    initialize_exciter(strength);

    for (size_t i = 0; i < m_modes.size(); ++i) {
        double spatial_amp = std::sin((i + 1) * M_PI * position);
        spatial_amp = std::abs(spatial_amp);

        m_modes[i].amplitude = m_modes[i].initial_amplitude * strength * spatial_amp;
    }
}

References compute_spatial_distribution(), initialize_exciter(), m_modes, m_spatial_distribution, and position.

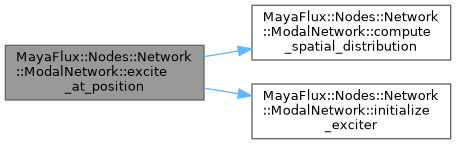

Here is the call graph for this function:
