initialize_modes()

void MayaFlux::Nodes::Network::ModalNetwork::initialize_modes ( const std::vector< double > &  ratios, double  base_decay  )

private

Initialize modes with given frequency ratios.

Definition at line 92 of file ModalNetwork.cpp.

{
    m_base_decay = base_decay;
    m_modes.clear();
    m_modes.reserve(ratios.size());

    for (size_t i = 0; i < ratios.size(); ++i) {
        ModalNode mode;
        mode.index = i;
        mode.frequency_ratio = ratios[i];
        mode.base_frequency = m_fundamental * ratios[i];
        mode.current_frequency = mode.base_frequency;

        mode.decay_time = base_decay / ratios[i];

        mode.initial_amplitude = 1.0 / static_cast<double>(i + 1);
        mode.amplitude = 0.0;

        mode.oscillator = std::make_shared<Generator::Sine>(static_cast<float>(mode.current_frequency));
        mode.oscillator->set_in_network(true);

        mode.decay_coefficient = Kinesis::Discrete::decay_per_sample(base_decay, m_sample_rate);

        m_modes.push_back(std::move(mode));
    }
}

References MayaFlux::Kinesis::Discrete::decay_per_sample(), MayaFlux::Nodes::Network::ModalNetwork::ModalNode::index, m_base_decay, m_fundamental, m_modes, MayaFlux::Nodes::Network::NodeNetwork::m_sample_rate, and mode.

Referenced by ModalNetwork(), and ModalNetwork().

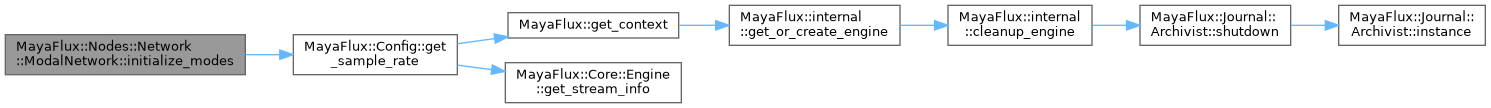

Here is the call graph for this function:

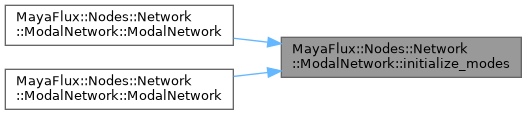

Here is the caller graph for this function:
