RAII owner of one video stream's codec and pixel-format scaler state. More...

#include <VideoStreamContext.hpp>

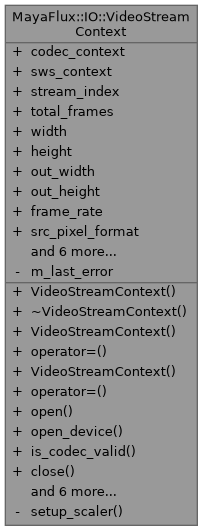

Collaboration diagram for MayaFlux::IO::VideoStreamContext:

Public Member Functions
	VideoStreamContext ()=default

	~VideoStreamContext ()

	VideoStreamContext (const VideoStreamContext &)=delete

VideoStreamContext &	operator= (const VideoStreamContext &)=delete

	VideoStreamContext (VideoStreamContext &&)=delete

VideoStreamContext &	operator= (VideoStreamContext &&)=delete

bool	open (const FFmpegDemuxContext &demux, uint32_t target_width=0, uint32_t target_height=0, int target_format=-1)
	Open the video stream from an already-probed demux context.

bool	open_device (const FFmpegDemuxContext &demux, uint32_t target_width=0, uint32_t target_height=0, int target_format=-1)
	Open codec only, without initialising the SwsContext scaler.

bool	is_codec_valid () const
	True if the codec context is open and ready to receive packets.

void	close ()
	Release codec and scaler resources.

bool	is_valid () const
	True if the codec and scaler are ready for decoding.

bool	rebuild_scaler_from_frame (const AVFrame *frame, uint32_t target_width=0, uint32_t target_height=0, int target_format=-1)
	Rebuild the SwsContext using the pixel format resolved from a live decoded frame.

void	flush_codec ()
	Flush codec internal buffers (call after a seek).

void	extract_stream_metadata (const FFmpegDemuxContext &demux, FileMetadata &out) const
	Populate stream-specific fields into an existing FileMetadata.

std::vector< FileRegion >	extract_keyframe_regions (const FFmpegDemuxContext &demux) const
	Extract keyframe positions as FileRegion entries.

const std::string &	last_error () const

Public Attributes
AVCodecContext *	codec_context = nullptr
	Owned; freed in destructor.

SwsContext *	sws_context = nullptr
	Owned; freed in destructor.

int	stream_index = -1

uint64_t	total_frames {}

uint32_t	width {}
	Source width in pixels.

uint32_t	height {}
	Source height in pixels.

uint32_t	out_width {}
	Output width after scaling.

uint32_t	out_height {}
	Output height after scaling.

double	frame_rate {}
	Average frame rate (fps).

int	src_pixel_format = -1
	Source AVPixelFormat.

int	out_pixel_format = -1
	Output AVPixelFormat.

uint32_t	out_bytes_per_pixel = 4
	Bytes per pixel in output format.

int	out_linesize {}
	Output row stride in bytes.

uint32_t	target_width {}
	Requested output width (0 = source).

uint32_t	target_height {}
	Requested output height (0 = source).

int	target_format = -1
	Requested AVPixelFormat (negative = RGBA).

Private Member Functions
bool	setup_scaler (uint32_t target_width, uint32_t target_height, int target_format)
	Allocate and initialise the SwsContext for pixel format conversion.

Private Attributes
std::string	m_last_error

Detailed Description

RAII owner of one video stream's codec and pixel-format scaler state.

Encapsulates all video-stream-specific FFmpeg objects:

AVCodecContext for the selected video stream
SwsContext for pixel-format conversion and optional rescaling
Cached video parameters: width, height, frame_rate, total_frames, pixel_format

Does NOT own AVFormatContext — that belongs to FFmpegDemuxContext. Packet reading is always delegated to the demuxer's format_context; this context only decodes and converts packets it receives.

The default output pixel format is AV_PIX_FMT_RGBA (4 bytes per pixel), chosen for direct compatibility with Vulkan's VK_FORMAT_R8G8B8A8_UNORM and the MayaFlux TextureBuffer / VKImage pipeline. For HDR workflows or compute-shader ingestion, callers can request AV_PIX_FMT_RGBAF32 or other formats via the target_format parameter.

Destruction order (enforced in destructor): sws_context → codec_context The associated FFmpegDemuxContext must outlive this object.

Definition at line 36 of file VideoStreamContext.hpp.
