MayaFlux::Buffers::LogicProcessor Class Reference

Digital signal processor that applies boolean logic operations to data streams. More...

#include <LogicProcessor.hpp>

Inheritance diagram for MayaFlux::Buffers::LogicProcessor:

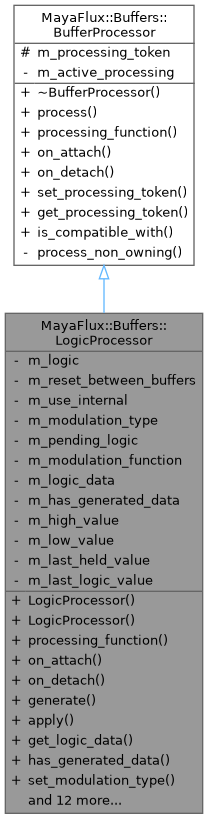

Collaboration diagram for MayaFlux::Buffers::LogicProcessor:

Public Types
using	ModulationFunction = std::function< double(double, double)>
	Function type for custom digital signal transformations.
enum class	ModulationType : uint8_t {   REPLACE , MULTIPLY , ADD , INVERT_ON_TRUE ,   HOLD_ON_FALSE , ZERO_ON_FALSE , CROSSFADE , THRESHOLD_REMAP ,   SAMPLE_AND_HOLD , CUSTOM }
	Defines how logic values modulate buffer content. More...

Public Member Functions
void	add_key (const std::shared_ptr< AudioBuffer > &buffer)
	Reads another buffer as an extra input slot of a parallel node.
bool	apply (const std::shared_ptr< Buffer > &buffer, ModulationFunction modulation_func=nullptr)
	Applies stored logic data to the given buffer.
void	clear_keys ()
	Removes every key.
void	clear_neighbourhood ()
	Turns the automaton off.
std::shared_ptr< LogicProcessor >	clone () const
	An independent processor over a clone of the node.
template<typename... Args> requires std::constructible_from<Nodes::Generator::Logic, Args...>
void	force_use_internal (Args &&... args)
	Forces the processor to use a new internal logic node.
bool	generate (size_t num_samples, const std::vector< double > &input_data)
	Generates discrete logic data from input without modifying any buffer.
double	get_high_value () const
	Gets the high value for THRESHOLD_REMAP mode.
std::shared_ptr< Nodes::Generator::Logic >	get_logic () const
	Gets the logic node used for processing.
const std::vector< double > &	get_logic_data () const
	Gets the stored logic data.
double	get_low_value () const
	Gets the low value for THRESHOLD_REMAP mode.
const ModulationFunction &	get_modulation_function () const
	Get current modulation function.
ModulationType	get_modulation_type () const
	Get current modulation type.
bool	get_reset_between_buffers () const
	Gets whether logic state is reset between buffer calls.
bool	has_generated_data () const
	Checks if logic data has been generated.
bool	is_using_internal () const
	Checks if the processor is using the internal logic node.
template<typename... Args> requires std::constructible_from<Nodes::Generator::Logic, Args...>
	LogicProcessor (Args &&... args)
	Constructs a LogicProcessor with internal Logic node.
	LogicProcessor (const std::shared_ptr< Nodes::Generator::Logic > &logic, bool reset_between_buffers=false)
	Constructs a LogicProcessor with external Logic node.
void	on_attach (const std::shared_ptr< Buffer > &buffer) override
	Called when the processor is attached to a buffer.
void	on_detach (const std::shared_ptr< Buffer > &) override
	Called when the processor is detached from a buffer.
void	processing_function (const std::shared_ptr< Buffer > &buffer) override
	Processes a buffer through the logic node.
void	set_bit_planes (uint32_t bits)
	Processes every sample as a word of bit streams, one node per bit.
void	set_modulation_function (ModulationFunction func)
	Set custom modulation function.
void	set_modulation_type (ModulationType type)
	Set how logic values modulate buffer content.
void	set_neighbourhood (size_t radius, size_t generations=1, bool wrap=true, bool memory=false)
	Treats the samples of a block as cells of an automaton.
void	set_reset_between_buffers (bool reset)
	Sets whether to reset logic state between buffer calls.
void	set_threshold_remap_values (double high_val, double low_val)
	Sets high and low values for THRESHOLD_REMAP mode.
void	update_logic_node (const std::shared_ptr< Nodes::Generator::Logic > &logic)
	Updates the logic node used for processing.
Public Member Functions inherited from MayaFlux::Buffers::BufferProcessor
virtual ProcessingToken	get_processing_token () const
	Gets the current processing token for this buffer.
virtual bool	is_compatible_with (const std::shared_ptr< Buffer > &) const
	Checks if this processor can handle the specified buffer type.
void	process (const std::shared_ptr< Buffer > &buffer)
	Applies a computational transformation to the data in the provided buffer.
virtual void	set_processing_token (ProcessingToken token)
	Gets the preferred processing backend for this processor.
virtual	~BufferProcessor ()=default
	Virtual destructor for proper cleanup of derived classes.

Private Member Functions
void	generate_keyed (size_t num_samples, const std::vector< double > &input_data)
void	generate_planes (size_t num_samples, const std::vector< double > &input_data)
void	generate_spatial (size_t num_samples, const std::vector< double > &input_data)
void	generate_temporal (size_t num_samples, const std::vector< double > &input_data)
void	lock_keys ()

Private Attributes
std::vector< uint8_t >	m_cells
	Automaton cells.
size_t	m_generations {}
	Automaton steps per block, 0 when off.
bool	m_has_generated_data
	Whether logic data has been generated.
double	m_high_value
	High value for THRESHOLD_REMAP.
std::vector< uint32_t >	m_key_words
	Words of the keys at the current sample.
std::vector< std::weak_ptr< AudioBuffer > >	m_keys
	Buffers read as extra input slots.
double	m_last_held_value
	Last held value for HOLD_ON_FALSE and SAMPLE_AND_HOLD.
double	m_last_logic_value
	Previous logic value for change detection.
std::vector< std::shared_ptr< AudioBuffer > >	m_live_keys
	Keys locked for the current block.
std::shared_ptr< Nodes::Generator::Logic >	m_logic
	Logic node for processing.
std::vector< double >	m_logic_data
	Stored logic processing results.
double	m_low_value
	Low value for THRESHOLD_REMAP.
bool	m_memory {}
	Whether blocks perturb the previous automaton result.
ModulationFunction	m_modulation_function
	Custom transformation function.
ModulationType	m_modulation_type
	How logic values modulate buffer content.
std::vector< uint8_t >	m_next_cells
	Automaton cells of the next generation.
std::shared_ptr< Nodes::Generator::Logic >	m_pending_logic
	Pending logic node update.
uint32_t	m_plane_bits {}
	Word width when processing bit planes, 0 when off.
std::vector< std::shared_ptr< Nodes::Generator::Logic > >	m_plane_nodes
	One clone of the node per bit plane.
std::shared_ptr< Nodes::Generator::Logic >	m_plane_template
	The node the plane clones were taken from.
std::vector< uint8_t >	m_previous_cells
	Last automaton result, kept when memory is on.
size_t	m_radius {}
	Neighbourhood radius of the automaton.
bool	m_reset_between_buffers
	Whether to reset logic between buffers.
std::vector< double >	m_slots
	Input slots handed to the node.
bool	m_use_internal
	Whether to use internal logic node.
bool	m_wrap { true }
	Whether the automaton's block ends meet.

Additional Inherited Members
Protected Attributes inherited from MayaFlux::Buffers::BufferProcessor
ProcessingToken	m_processing_token { ProcessingToken::AUDIO_BACKEND }

Detailed Description

Digital signal processor that applies boolean logic operations to data streams.

LogicProcessor bridges Nodes::Generator::Logic nodes with the buffer processing system, enabling sophisticated digital signal manipulation through various modulation strategies.

The processor's job is simple:

1. Iterate through buffer samples
2. Generate logic values (0.0 or 1.0) by calling the Logic node
3. Apply logic to buffer data using a modulation strategy

All logic computation (threshold detection, edge detection, state machines, etc.) is handled by the Logic node itself. The processor only manages iteration and application of results.

Use cases include:

• Binary pattern detection in data streams
• Digital control signal generation
• Conditional data flow routing
• Event triggering based on signal characteristics
• Digital state machine implementation
• Signal quantization and discretization

Definition at line 34 of file LogicProcessor.hpp.

---

The documentation for this class was generated from the following files:

• LogicProcessor.hpp
• LogicProcessor.cpp
