VertexSampler.hpp File Reference

#include "Stochastic.hpp"
#include "MayaFlux/Nodes/Graphics/VertexSpec.hpp"

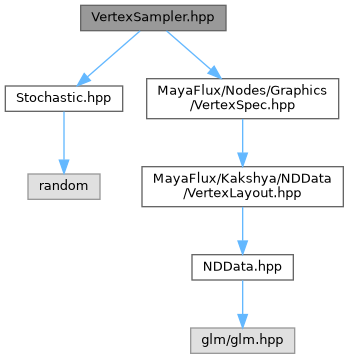

Include dependency graph for VertexSampler.hpp:

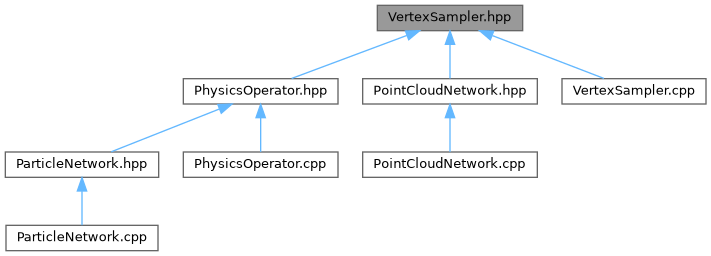

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	MayaFlux::Kinesis::SamplerBounds
	Spatial domain for vertex generation. More...
struct	MayaFlux::Kinesis::SampleResult
	Position and normalised color derived from spatial sampling. More...

Namespaces
namespace	MayaFlux
	Main namespace for the Maya Flux audio engine.
namespace	MayaFlux::Kinesis

Enumerations
enum class	MayaFlux::Kinesis::SpatialDistribution : uint8_t {   MayaFlux::Kinesis::RANDOM_VOLUME , MayaFlux::Kinesis::RANDOM_SURFACE , MayaFlux::Kinesis::GRID , MayaFlux::Kinesis::SPHERE_VOLUME ,   MayaFlux::Kinesis::SPHERE_SURFACE , MayaFlux::Kinesis::UNIFORM_GRID , MayaFlux::Kinesis::RANDOM_SPHERE , MayaFlux::Kinesis::RANDOM_CUBE ,   MayaFlux::Kinesis::PERLIN_FIELD , MayaFlux::Kinesis::BROWNIAN_PATH , MayaFlux::Kinesis::STRATIFIED_CUBE , MayaFlux::Kinesis::SPLINE_PATH ,   MayaFlux::Kinesis::LISSAJOUS , MayaFlux::Kinesis::FIBONACCI_SPHERE , MayaFlux::Kinesis::FIBONACCI_SPIRAL , MayaFlux::Kinesis::TORUS ,   MayaFlux::Kinesis::EMPTY }
	Spatial distribution mode for point cloud and particle generation. More...

Functions
std::vector< SampleResult >	MayaFlux::Kinesis::generate_samples (SpatialDistribution distribution, size_t count, const SamplerBounds &bounds, Kinesis::Stochastic::Stochastic &rng)
	Generate a batch of spatially distributed samples.
SampleResult	MayaFlux::Kinesis::generate_sample_at (SpatialDistribution distribution, size_t index, size_t total, const SamplerBounds &bounds, Kinesis::Stochastic::Stochastic &rng)
	Generate a single sample at a specific index (for indexed/sequential modes).
Nodes::PointVertex	MayaFlux::Kinesis::to_point_vertex (const SampleResult &s, glm::vec2 size_range={ 8.0F, 12.0F }) noexcept
	Project SampleResult to PointVertex.
Nodes::LineVertex	MayaFlux::Kinesis::to_line_vertex (const SampleResult &s, glm::vec2 thickness_range={ 1.0F, 2.0F }) noexcept
	Project SampleResult to LineVertex.
std::vector< Nodes::PointVertex >	MayaFlux::Kinesis::to_point_vertices (std::span< const SampleResult > samples, glm::vec2 size_range={ 8.0F, 12.0F })
	Batch-project SampleResult vector to PointVertex.
std::vector< Nodes::LineVertex >	MayaFlux::Kinesis::to_line_vertices (std::span< const SampleResult > samples, glm::vec2 thickness_range={ 1.0F, 2.0F })
	Batch-project SampleResult vector to LineVertex.
