window_coords() [4/4]

MAYAFLUX_API glm::vec2 MayaFlux::window_coords	(	double	ndc_x,
		double	ndc_y,
		double	ndc_z,
		uint32_t	window_width,
		uint32_t	window_height
	)

Convert NDC coordinates to window pixel coordinates.

Parameters

ndc_x	X coordinate in NDC space [-1, +1]
ndc_y	Y coordinate in NDC space [-1, +1] (center origin, +Y up)
ndc_z	Z coordinate (ignored, accepted for convenience when passing vec3)
window_width	Window width in pixels
window_height	Window height in pixels

Returns

Window coordinates in pixels (top-left origin, +Y down)

Inverse of normalize_coords(). Z coordinate is ignored.

Definition at line 38 of file Windowing.cpp.

{
    (void)ndc_z;
    float window_x = (static_cast<float>(ndc_x) + 1.0F) * 0.5F * static_cast<float>(window_width);
    float window_y = (1.0F - static_cast<float>(ndc_y)) * 0.5F * static_cast<float>(window_height);
    return { window_x, window_y };
}

Referenced by window_coords(), window_coords(), and window_coords().

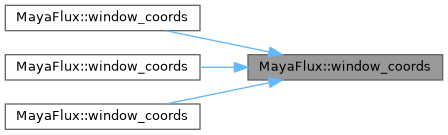

Here is the caller graph for this function:
